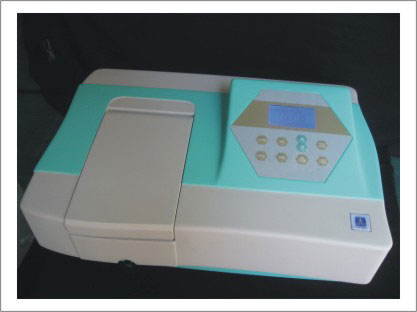

- UV/Visible Spectrometer Model UV-BT 610



UV-BT-610 is an advanced and affordable system that generates accurate and reproducible measurements for qualitative and quantitative analyses. The wide path length and optional accessories make them ideal for university, water and wastewater labs, Environmental protection, agricultural, petroleum industries and other fields of quality control and research.

UV-BT-610 most valuable instrument with highest cost effective with large LCD screen which is enough to read from any distance.

UV-BT-610 has built-in RAM helps to store and reload more then 195 standard curves and 495 test data results.

UV-BT-610 design is convenient to change lamp easily without and further alignment and extend the lifetime of the Deuterium lamp and tungsten lamp by turned on /off individually.

UV-BT-610 a variety of optional accessories such as 5-100mm path length glass cuvettes with optional holder can be accommodating in a large sample compartment

V-BT-350 is compatible with windows based software can help user to expand the application to standard curves and Kinetics.

Optional software UV-Brite can expand the applications to Kinetics and Quantitative make the instrument very versatile


Four Modes:

1- T Mode: Continuously measure the Transmittance of samples
2- A Mode: Continuously measure the Absorbance of samples
3- C Mode: Standard Curve method can use at most 9 standard samples to create a new standard curve, and to measure the unknown samples by the new one.
4- F Mode: Coefficient Method Input the known K and C to measure the unknown concentration samples.








Specifications:

Wavelength Range Spectral Band Width Wavelength Accuracy Wavelength Reproducibility Wavelength Setting Photometric System Photometric Accuracy Photometric Reproducibility Photometric Display Range Stability Stray Light Data Output Port Light Source Detector Grating Sample Compartment Software Demension Weight

200-1000nm 2nm ±2nm 1nm Auto Single Beam ±0.5%T 0.3%T 0-200%T, -0.3-3.0A, 0-9999C 0.002A/h @ 500nm =0.3%T@220nm, 360nm USB Port & Parallel Port(Printer) Deuterium Lamp & Tungsten Halogen Lamp Silicon Photodiode 1200 lines/mm 4 Positions 10mm cell changer optional 440mm x 300mm x 200mm 15 kg
